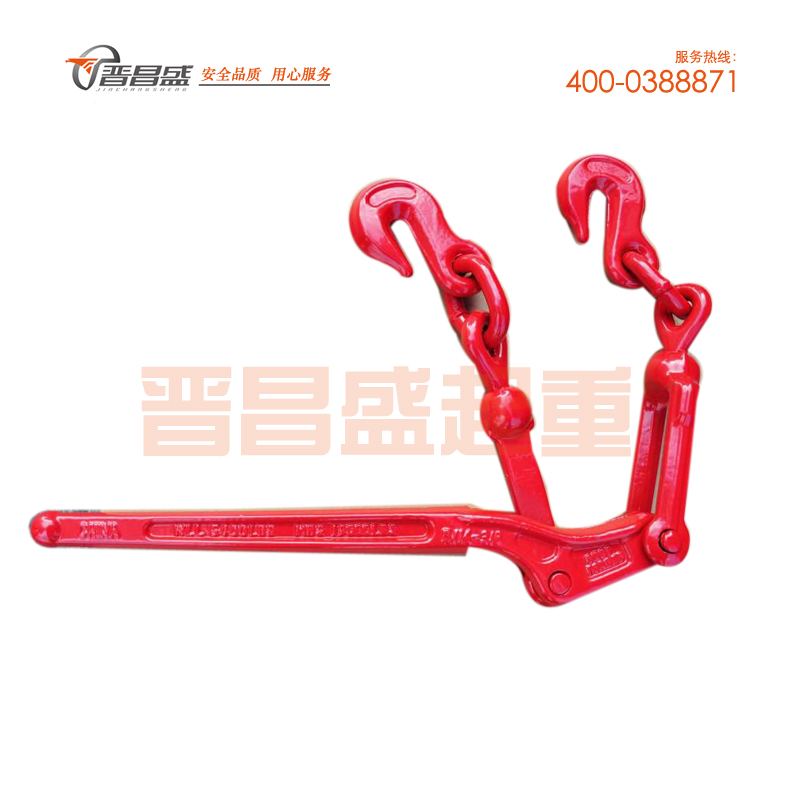

杠桿式拉緊器（鏈鉤）
|
規格Min-Max Chain Size(in.) |
工作負荷Working Load Limited(lbs) |
測試?yán)?span>Proof load(lbs) |
破斷負荷Minimum Utimate Load(lbs) |
重量Weight Each (lbs) |
手柄長度Handle Length(in) |
各部位尺寸 Dimensions(in.) |
||||||
|
A |
B |
C |
D |
E |
F |
G |
||||||
|
1/4-5/16 |
2200 |
4400 |
7800 |
3.52 |
11.42 |
18.00 |
16.97 |
13.62 |
11.42 |
8.07 |
7.76 |
31 |
|
5/16-3/8 |
5400 |
10800 |
19000 |
8.37 |
15.43 |
25.47 |
23.62 |
22.32 |
15.34 |
11.26 |
11.26 |
47 |
|
3/8-1/2 |
9200 |
18400 |
33000 |
12.11 |
17.24 |
30.08 |
28.62 |
24.30 |
17.24 |
13.96 |
13.96 |
59 |
|
1/2-5/8 |
13000 |
26000 |
46000 |
19.7 |
21.00 |
31.25 |
29.75 |
25.00 |
21.00 |
14.63 |
13.75 |
72 |
杠桿式拉緊器（無鉤）
|
規格Min-Max Chain Size(in.) |
工作負荷Working Load Limited(lbs) |
破斷負荷Minimum Utimate Load(lbs) |
重量Weight Each (lbs) |
手柄長度Handle Length(in) |
各部位尺寸 Dimensions(in.) |
|||||
|
A |
B |
C |
D |
E |
F |
|||||
|
3/8 |
5400 |
19000 |
5.40 |
15.94 |
22.28 |
18.50 |
17.20 |
15.43 |
6.70 |
8.70 |
